Arri M8
Technical Information
| Series | M-Series |
| Model | M-Series M8 |
| Mains Plug | VEAM |
| Lamphead Type | Open Face with Facetted Reflector, 800 W |
| Reflector | MAX Technology reflector made of high purity aluminium |
| Lamp Type | Metal Halide 800 W/SE (Only 800 W, no 575 W lamps) |
| Power Consumption | 800 W |
| Voltage Range | 90 to 130 V / 180 to 250 V |
| Lamp Base | G22 |
| Dimming | yes, 50 to 100 % via ARRI Ballast Unit |
| Correlated Color Temperature | 6,000 K |
| Beam Angle | 15° to 62° |
| Weight in kg net* | approx. 8.5 kg |
| Weight in kg packed* | approx. 10.7 kg |
| Weight in lbs. net* | approx. 18.50 lbs |
| Weight in lbs. Packed* | approx. 23.50 lbs |
| Measurements (HxWxL) incl. Pin in mm* | 591 x 350 x 310 mm |
| Measurements (HxWxL) excl. Pin in mm* | 458 x 350 x 310 mm |
| Measurements (HxWxL) incl. Pin in inch* | 23.3 x 13.8 x 12.2″ |
| Measurements (HxWxL) excl. Pin in inch* | 18.0 x 13.8 x 12.2″ |
| Measurements (HxWxL) Packed size in mm* | 440 x 400 x 460 mm |
| Measurements (HxWxL) Packed size in inch* | 17.3 x 15.8 x 18.1″ |
| Lens / UV-Protection Glass Diameter in mm | 200 mm |
| Lens / UV-Protection Glass Diameter in inch | 7.9″ |
| Accessory Diameter in mm | 230 mm |
| Accessory Diameter in inch | 9.1″ (Scrim) |
| Barndoor in mm | 245 mm |
| Barndoor in inch | 9.7″ |
| Mounting | Spigot 28 mm / 1 1/8″ (1.1″) |
| Housing Color | Blue/Silver |
| Protection Class / IP Rating | I / IP23 |
| Certifications | CE, UKCA, CB, GS, cNRTLus |
| Series | M-Series |
| Model | M-Series M8 |
| Mains Plug | VEAM |
| Lamphead Type | Open Face with Facetted Reflector, 800 W |
| Reflector | MAX Technology reflector made of high purity aluminium |
| Lamp Type | Metal Halide 800 W/SE (Only 800 W, no 575 W lamps) |
| Power Consumption | 800 W |
| Voltage Range | 90 to 130 V / 180 to 250 V |
| Lamp Base | G22 |
| Dimming | yes, 50 to 100 % via ARRI Ballast Unit |
| Correlated Color Temperature | 6,000 K |
| Beam Angle | 15° to 62° |
| Weight in kg net* | approx. 8.5 kg |
| Weight in kg packed* | approx. 10.7 kg |
| Weight in lbs. net* | approx. 18.50 lbs |
| Weight in lbs. Packed* | approx. 23.50 lbs |
| Measurements (HxWxL) incl. Pin in mm* | 591 x 350 x 310 mm |
| Measurements (HxWxL) excl. Pin in mm* | 458 x 350 x 310 mm |
| Measurements (HxWxL) incl. Pin in inch* | 23.3 x 13.8 x 12.2″ |
| Measurements (HxWxL) excl. Pin in inch* | 18.0 x 13.8 x 12.2″ |
| Measurements (HxWxL) Packed size in mm* | 440 x 400 x 460 mm |
| Measurements (HxWxL) Packed size in inch* | 17.3 x 15.8 x 18.1″ |
| Lens / UV-Protection Glass Diameter in mm | 200 mm |
| Lens / UV-Protection Glass Diameter in inch | 7.9″ |
| Accessory Diameter in mm | 230 mm |
| Accessory Diameter in inch | 9.1″ (Scrim) |
| Barndoor in mm | 245 mm |
| Barndoor in inch | 9.7″ |
| Mounting | Spigot 28 mm / 1 1/8″ (1.1″) |
| Housing Color | Blue/Silver |
| Protection Class / IP Rating | I / IP23 |
| Certifications | CE, UKCA, CB, GS, cNRTLus |
Description

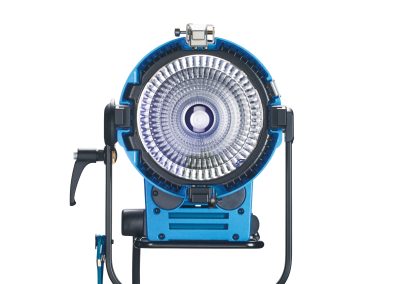

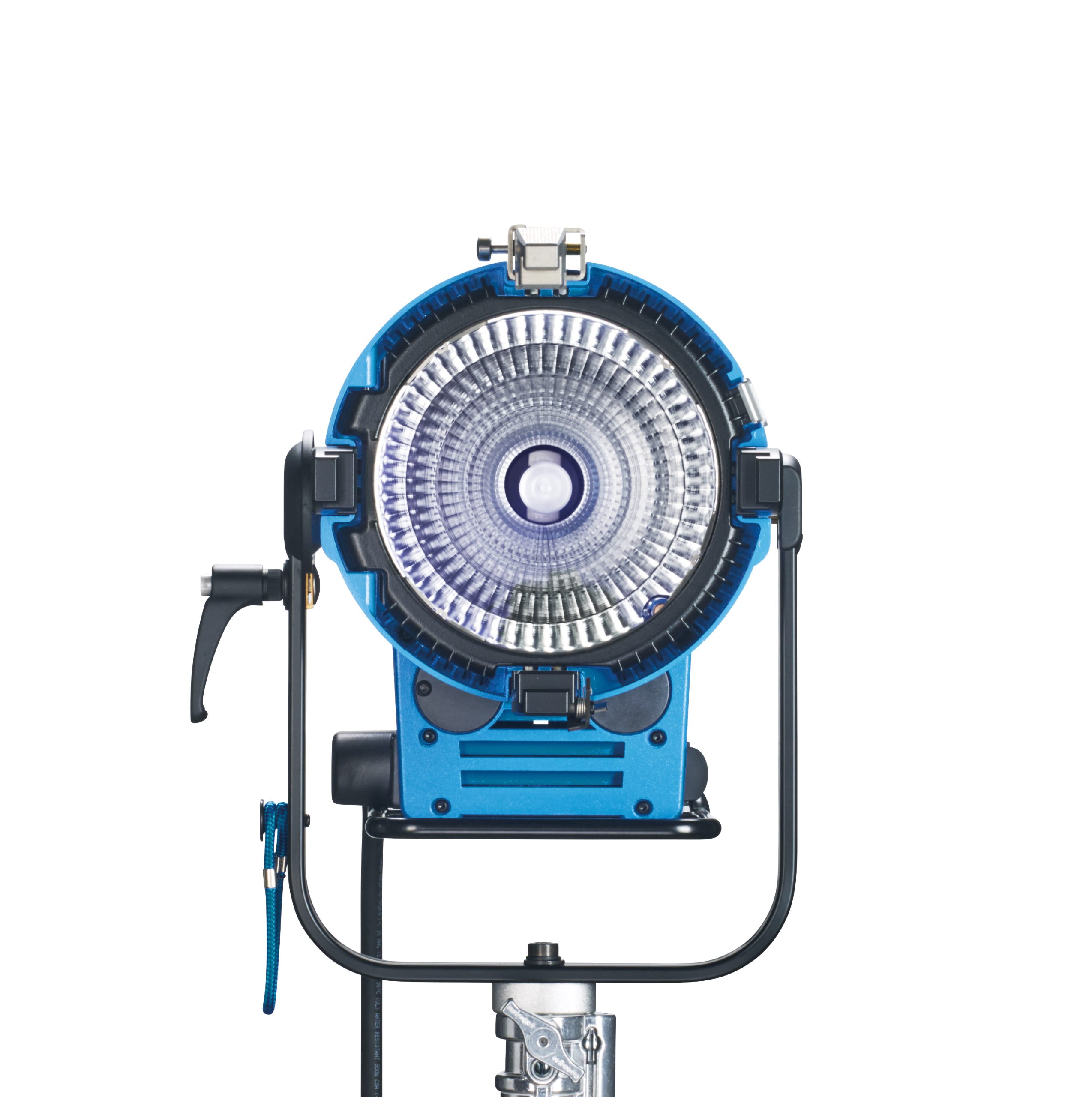

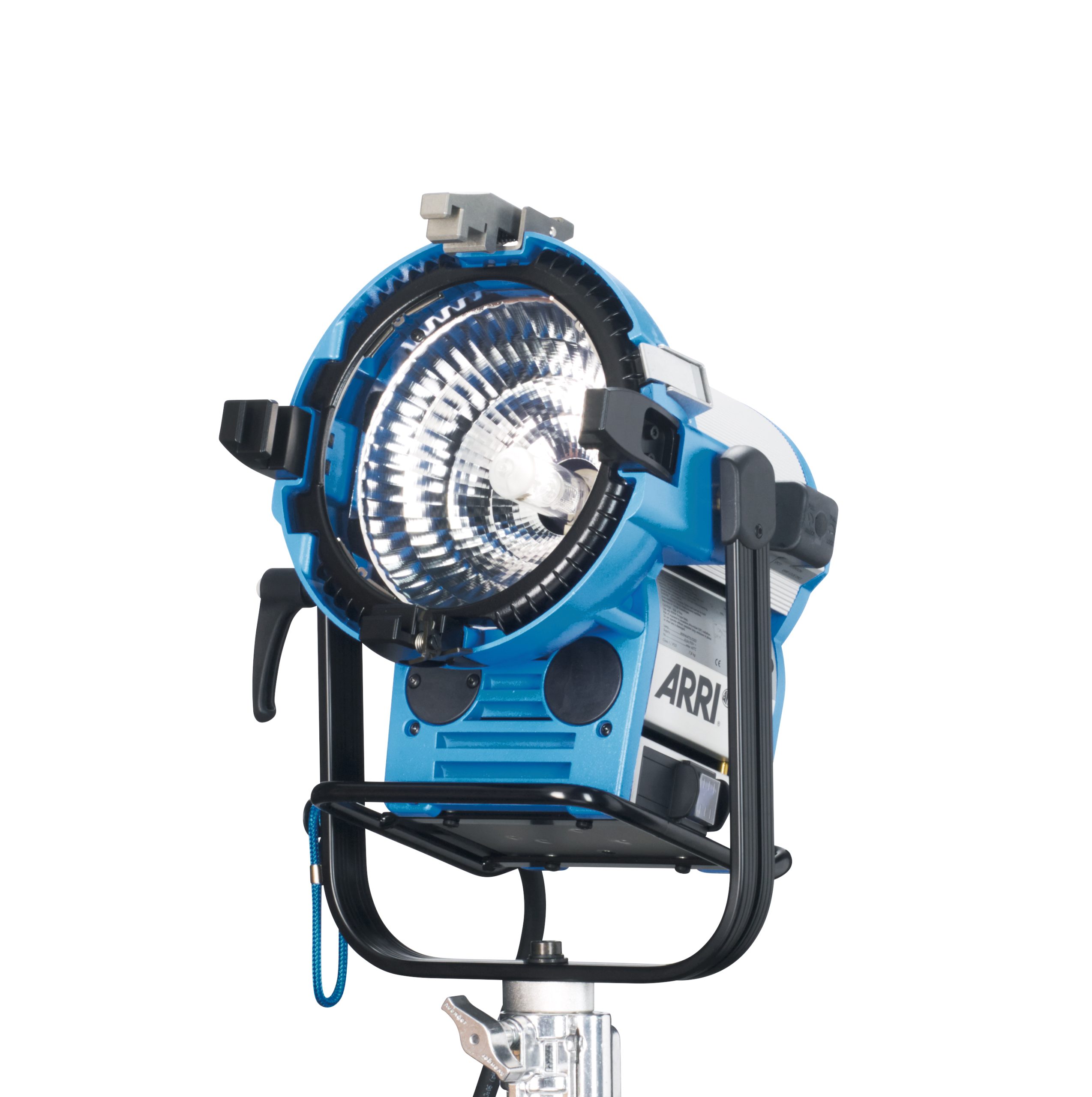

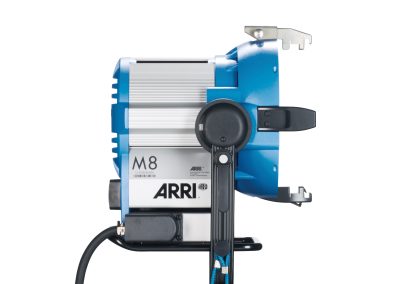

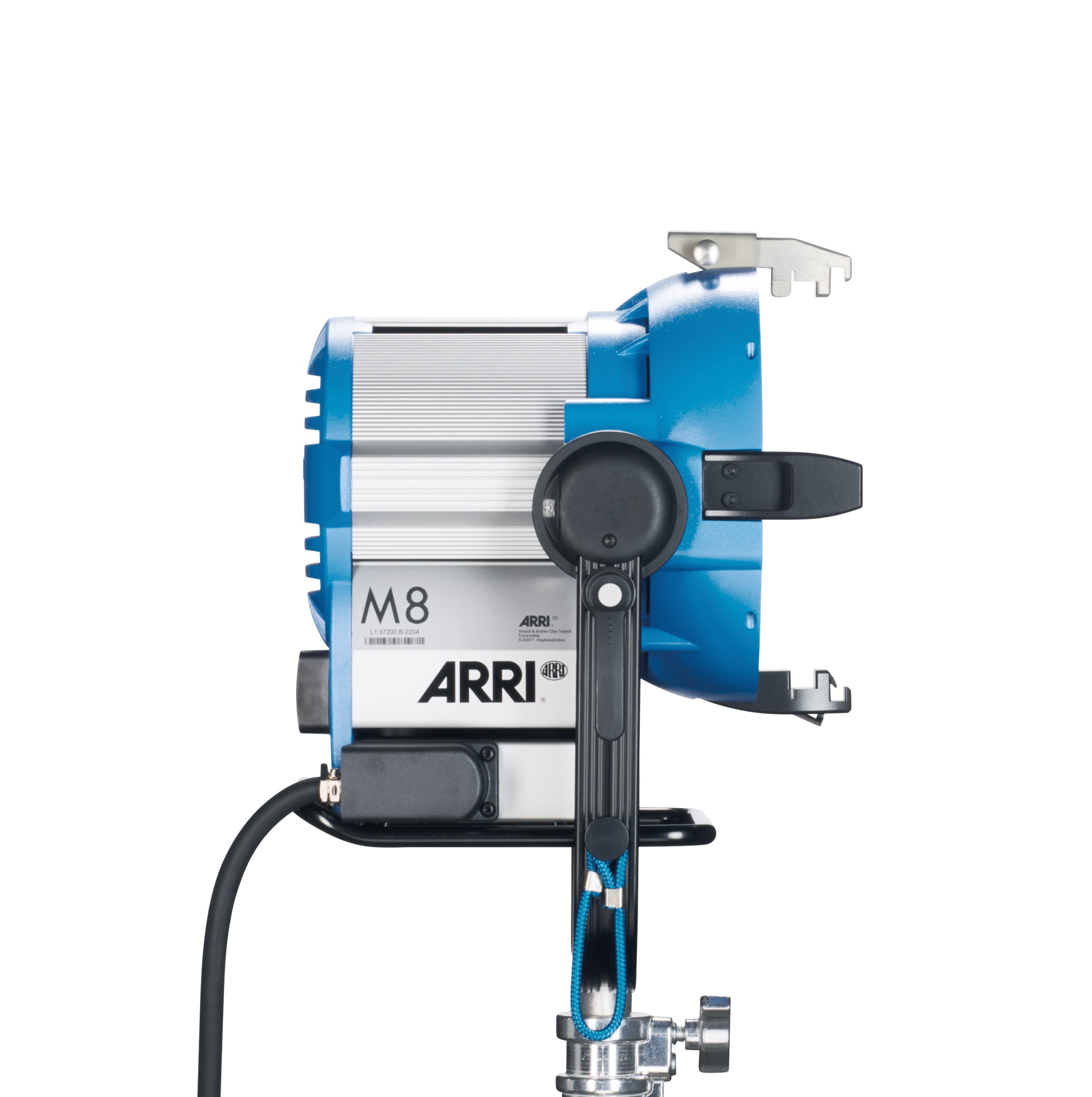

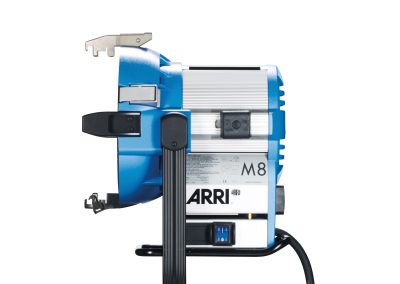

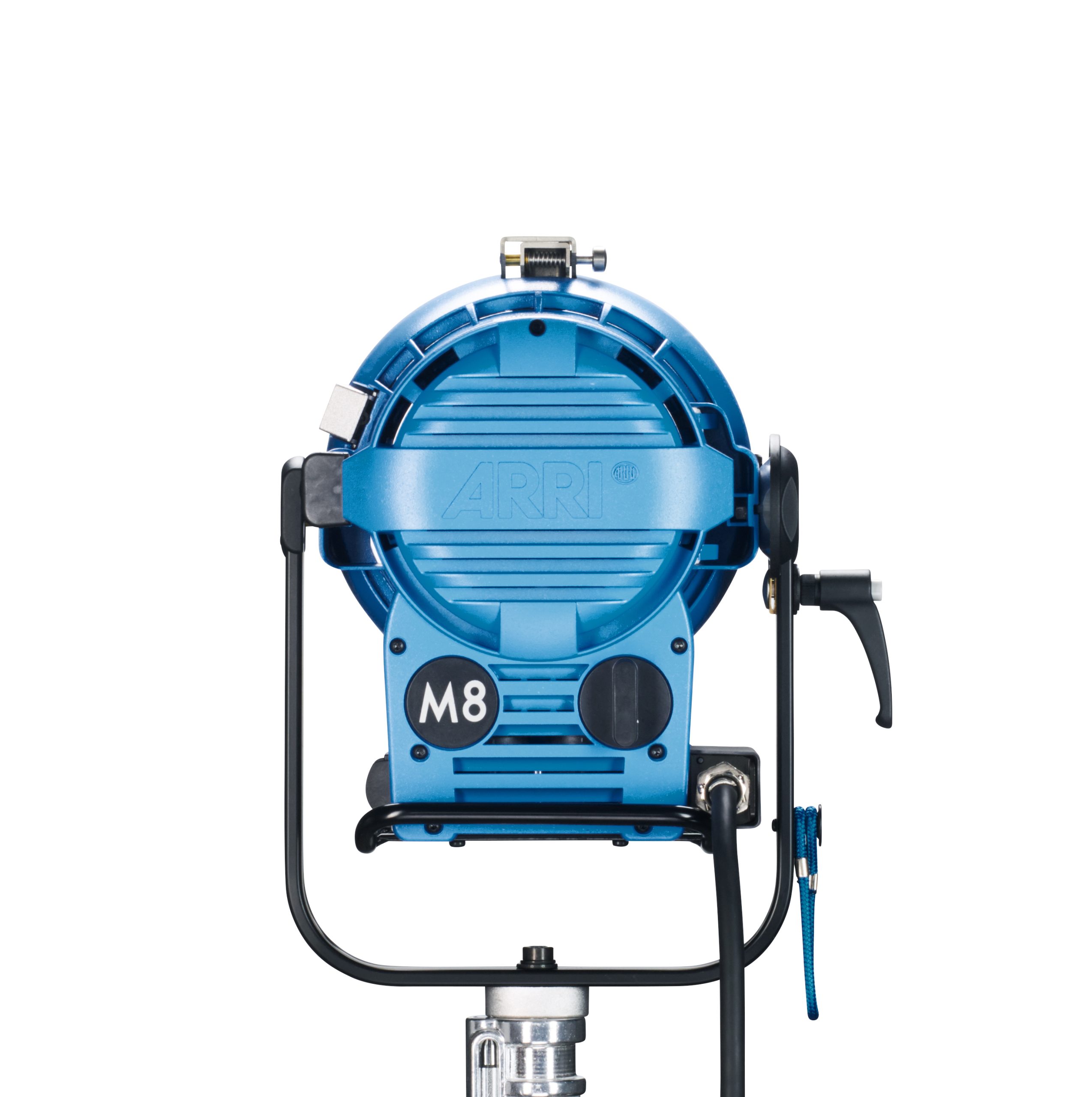

The M8 is the latest and smallest in ARRI’s highly successful M-Series HMI line. Like the rest of the M-Series, the M8 features MAX Technology, a unique, patented reflector design that combines the advantages of Fresnel and PAR lamps.
The combination of an open-face design and the unparalleled efficiency of the MAX Technology reflector makes the M8 exceptionally bright; in fact, the light output from an 800W lamp is close to that of a 1,200W Fresnel or PAR (with lens). The fixture can be focused between 15° and 60° with a simple turn of the focus knob, producing remarkably even light fields and crisp, clear shadows. By eliminating the need for bulky, fragile spread lenses, the M8 speeds up on-set workflows.
Features of the ARRI M8
- Lens-less MAX technology: Easy to use
- Light output equivalent to a 1,200 W fixture
- Smallest lamp head with MAX Technology reflector
- High mobility for multiple uses
- Focusable between 15° and 60°
- Cross cooling allows safe operation even at 90° tilt
- Uses 230 & 245mm available from ARRI True Blue D12 and Chimera
- Cable Loss Compensation (CCL)
- Uses existing 575 to 1,800 W cables with international connectors
- Suitable for high frame rate imaging
- IP rating IP23
- Tilt lock to stabilize heavy accessories
