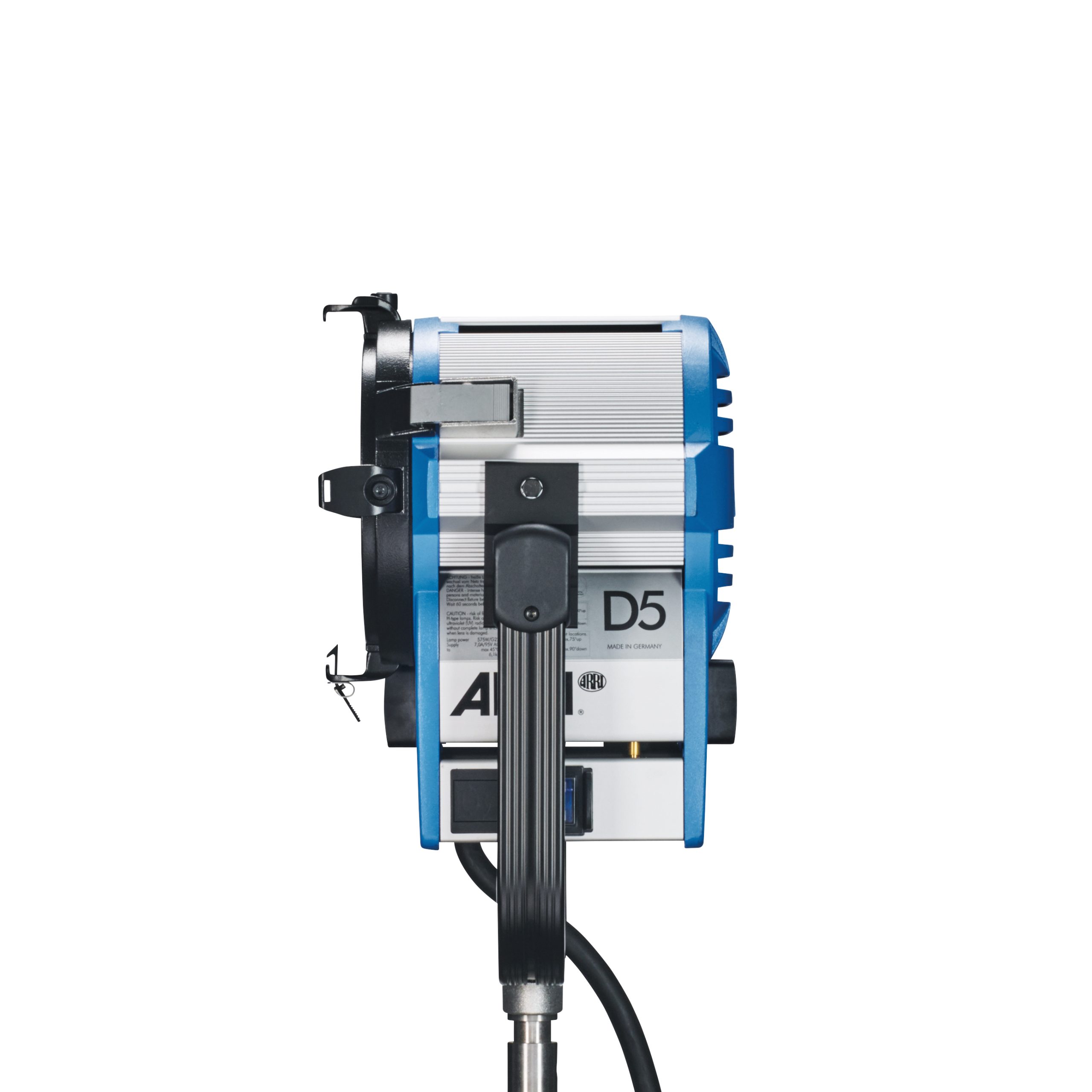

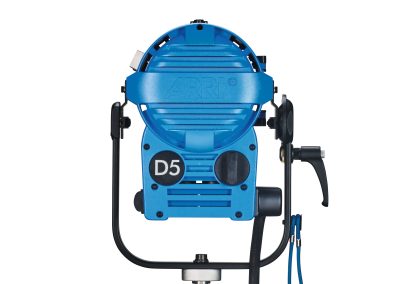

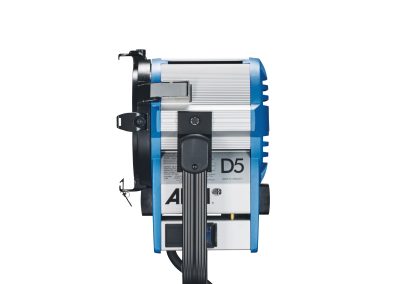

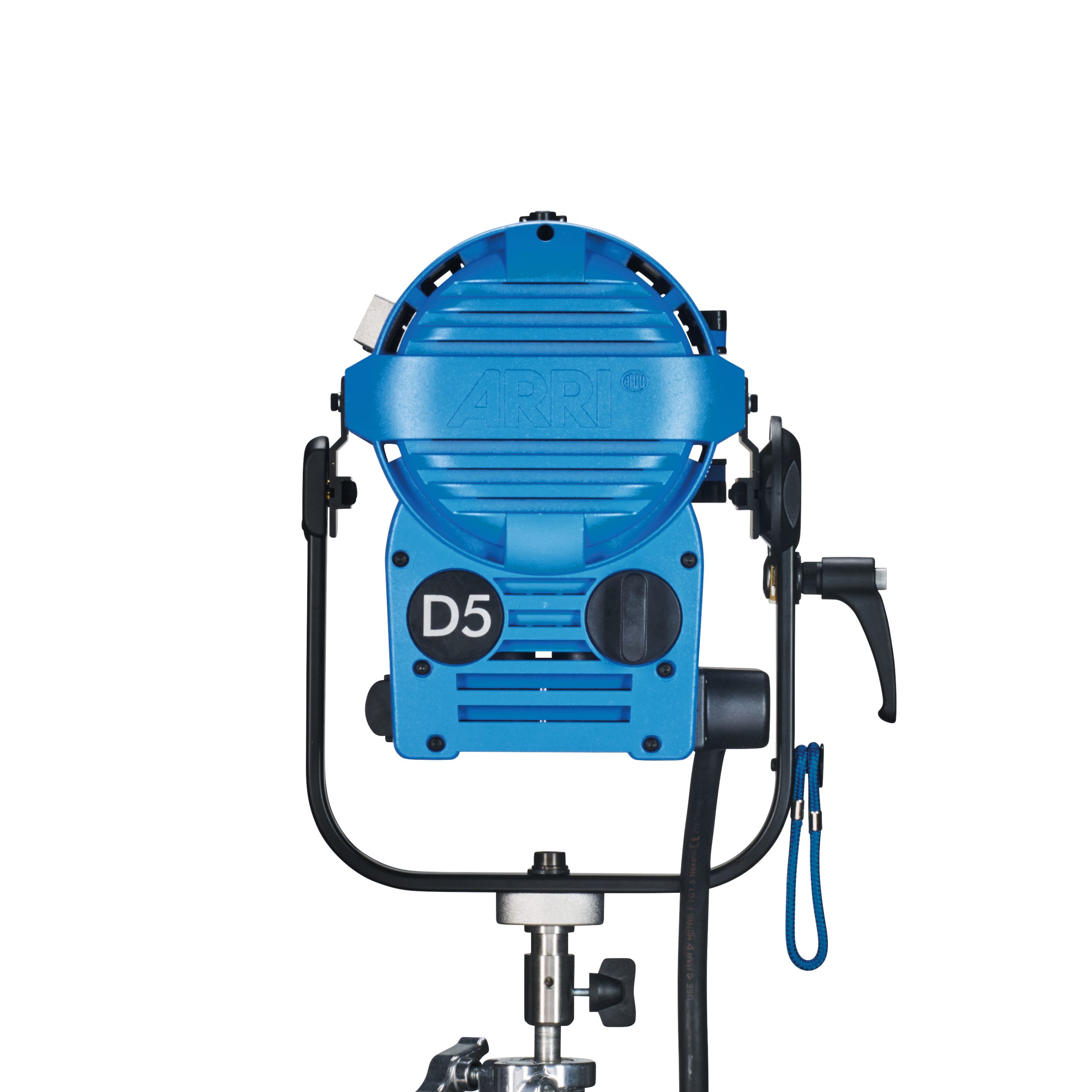

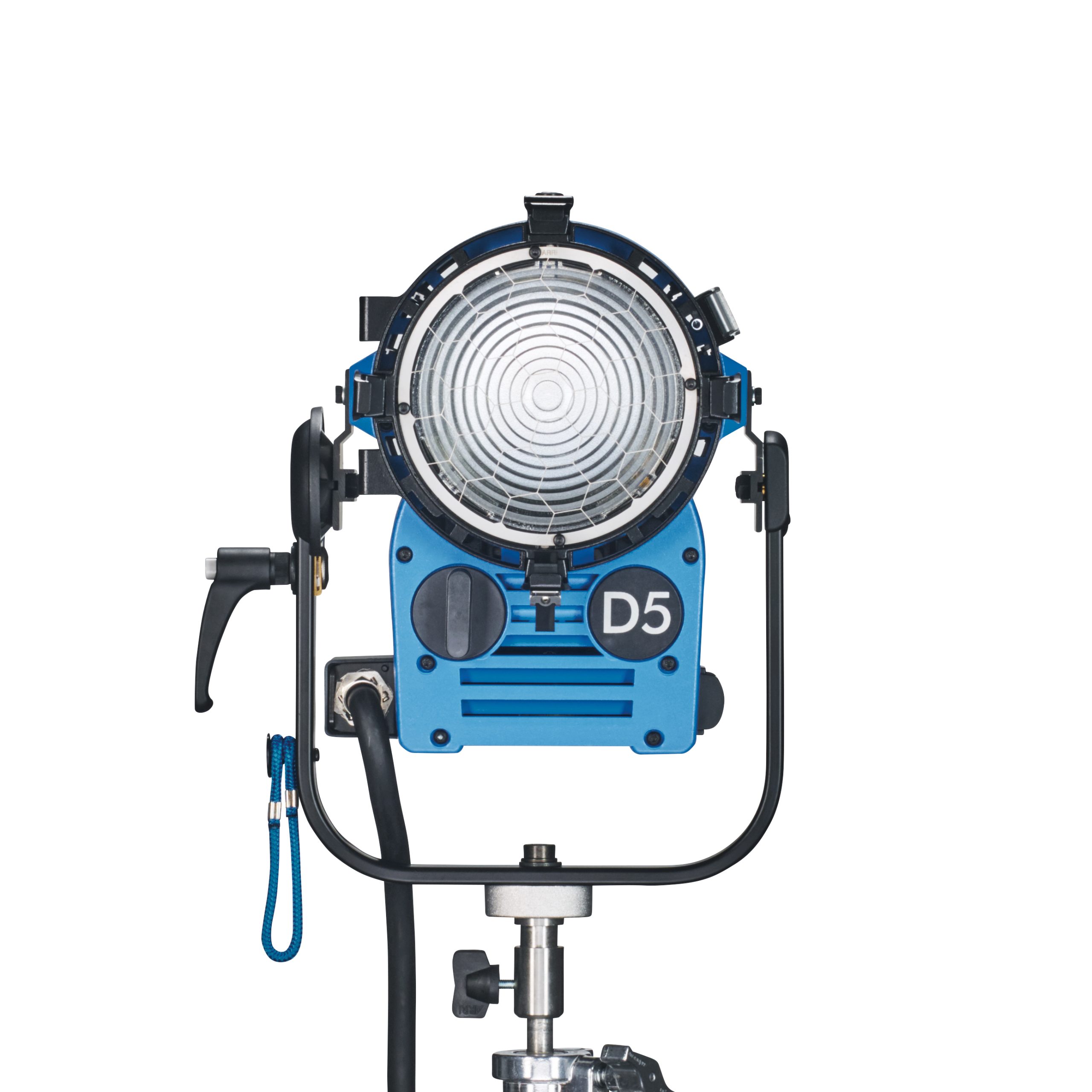

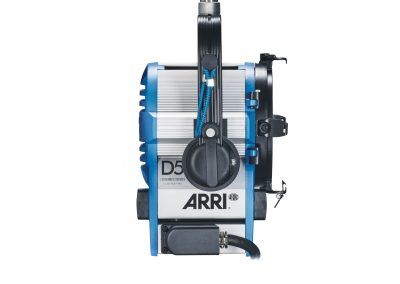

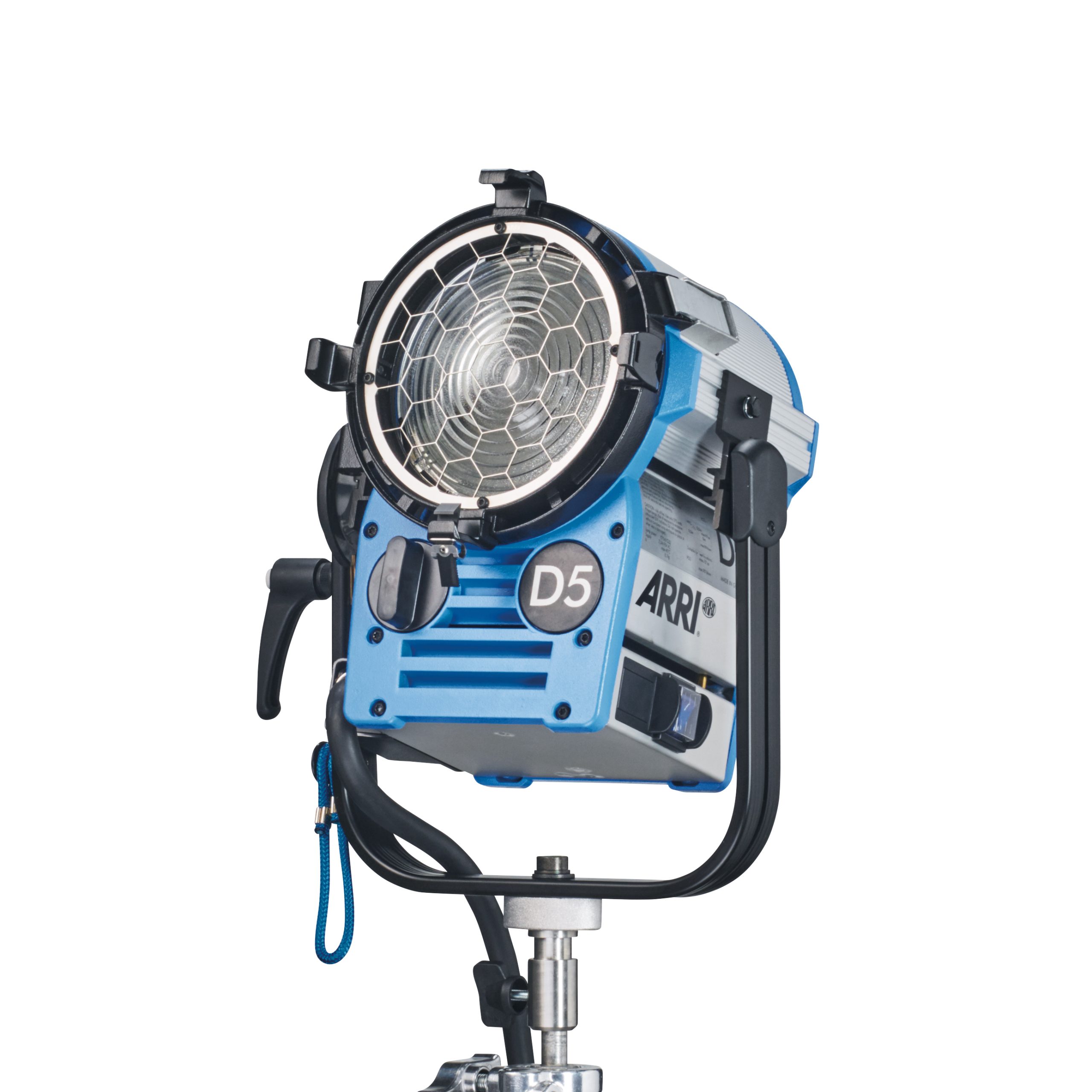

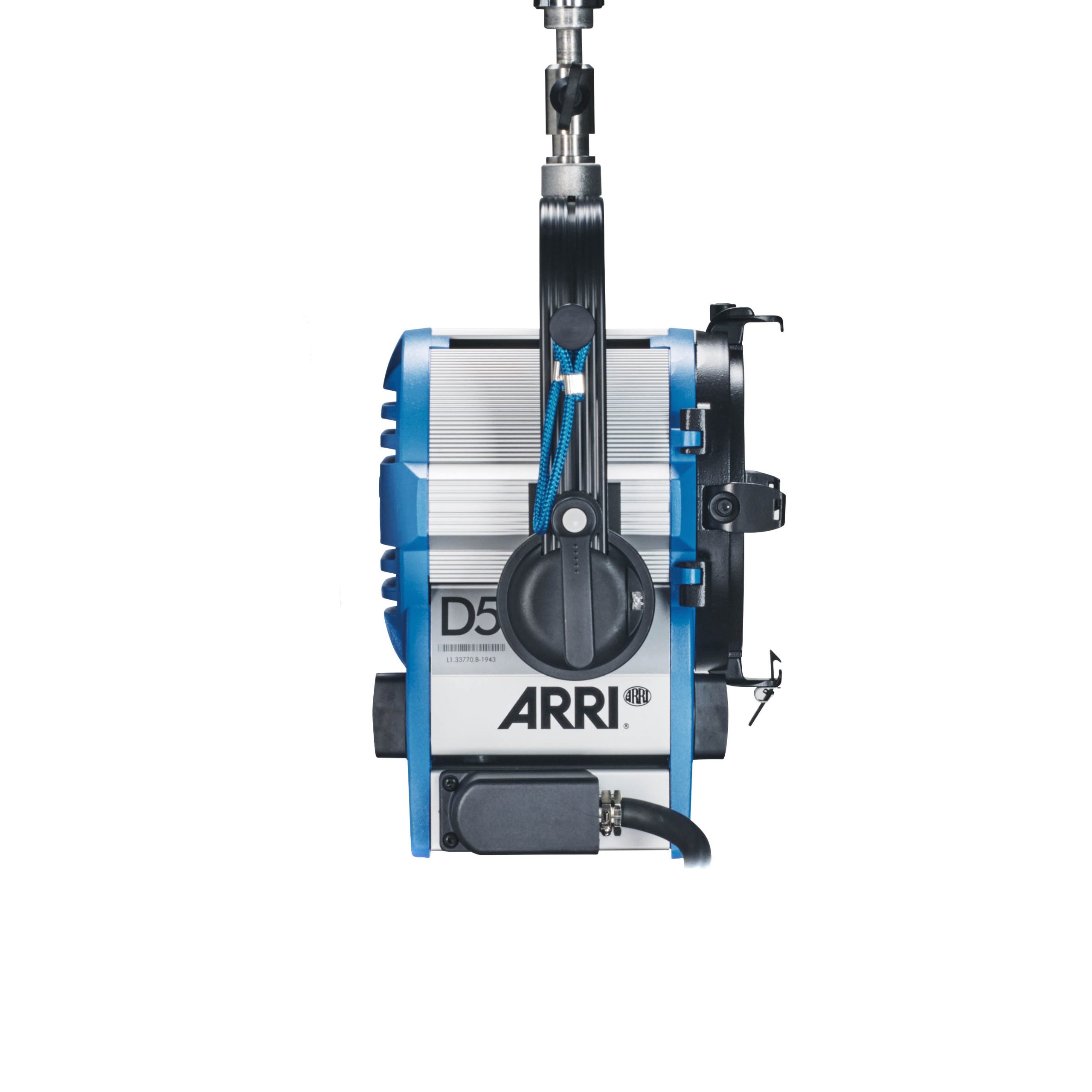

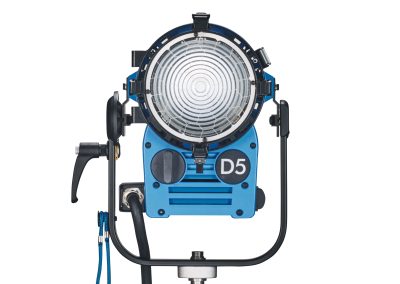

ARRI D5 (575W HMI Fresnel)
Technical Information
| Series | True Blue D |
| Model | True Blue D5 |
| Mains Plug | VEAM, Schaltbau (GTV-Standard) |
| Lamphead Type | Fresnel, 575 W |
| Reflector | Spherical specular high purity aluminium |
| Lamp Type | Metal Halide 575 W/SE |
| Power Consumption | 575 W |
| Voltage Range | 95 V |
| Lamp Base | G22 |
| Dimming | yes, 50 to 100% via ARRI Ballast Unit |
| Correlated Color Temperature | 6,000 K |
| Beam Angle | 6° to 56° |
| Weight in kg net* | approx. 5.9 kg |
| Weight in kg packed* | approx. 7.3 kg |
| Weight in lbs. net* | approx. 13.00 lbs |
| Weight in lbs. Packed* | approx. 16.10 lbs |
| Measurements (HxWxL) incl. Pin in mm* | 433 x 327 x 223 mm |
| Measurements (HxWxL) excl. Pin in mm* | 360 x 327 x 223 mm |
| Measurements (HxWxL) incl. Pin in inch* | 17.1 x 12.9 x 8.8″ |
| Measurements (HxWxL) excl. Pin in inch* | 14.2 x 12.9 x 8.8″ |
| Measurements (HxWxL) Packed size in mm* | 390 x 390 x 360 mm |
| Measurements (HxWxL) Packed size in inch* | 15.3 x 15.3 x 14.1″ |
| Lens / UV-Protection Glass Diameter in mm | 150 mm |
| Lens / UV-Protection Glass Diameter in inch | 5.9″ |
| Accessory Diameter in mm | 197 mm |
| Accessory Diameter in inch | 7.8″ (Scrim) |
| Barndoor in mm | 197 mm |
| Barndoor in inch | 7.8″ |
| Mounting | Spigot 28 mm / 1 1/8″ (1.1″) |
| Housing Color | Blue/Silver, Black |
| Protection Class / IP Rating | I / IP23 |
| Certifications | CE,UKCA, CB,GS, cNRTLus |
| Series | True Blue D |
| Model | True Blue D5 |
| Mains Plug | VEAM, Schaltbau (GTV-Standard) |
| Lamphead Type | Fresnel, 575 W |
| Reflector | Spherical specular high purity aluminium |
| Lamp Type | Metal Halide 575 W/SE |
| Power Consumption | 575 W |
| Voltage Range | 95 V |
| Lamp Base | G22 |
| Dimming | yes, 50 to 100% via ARRI Ballast Unit |
| Correlated Color Temperature | 6,000 K |
| Beam Angle | 6° to 56° |
| Weight in kg net* | approx. 5.9 kg |
| Weight in kg packed* | approx. 7.3 kg |
| Weight in lbs. net* | approx. 13.00 lbs |
| Weight in lbs. Packed* | approx. 16.10 lbs |
| Measurements (HxWxL) incl. Pin in mm* | 433 x 327 x 223 mm |
| Measurements (HxWxL) excl. Pin in mm* | 360 x 327 x 223 mm |
| Measurements (HxWxL) incl. Pin in inch* | 17.1 x 12.9 x 8.8″ |
| Measurements (HxWxL) excl. Pin in inch* | 14.2 x 12.9 x 8.8″ |
| Measurements (HxWxL) Packed size in mm* | 390 x 390 x 360 mm |
| Measurements (HxWxL) Packed size in inch* | 15.3 x 15.3 x 14.1″ |
| Lens / UV-Protection Glass Diameter in mm | 150 mm |
| Lens / UV-Protection Glass Diameter in inch | 5.9″ |
| Accessory Diameter in mm | 197 mm |
| Accessory Diameter in inch | 7.8″ (Scrim) |
| Barndoor in mm | 197 mm |
| Barndoor in inch | 7.8″ |
| Mounting | Spigot 28 mm / 1 1/8″ (1.1″) |
| Housing Color | Blue/Silver, Black |
| Protection Class / IP Rating | I / IP23 |
| Certifications | CE,UKCA, CB,GS, cNRTLus |
Description
When you need a lightweight Fresnel that uses daylight characteristics in a compact and highly efficient package, the ARRI True Blue D-Series Fresnel is the way to go. ARRI’s elegant modular construction, using corrosion-resistant extruded aluminum and lightweight die-casting, provides excellent structural strength and weather resistance. Coupled with ARRI flicker-free Electronic Ballasts, the ARRI D5 True Blue D-Series is a surefire choice.
ARRI D5 (575W HMI Fresnel) Features
- Cross-Cooling System
- Easy Maintenance
- Adjustable Accessory Holder
- Barndoor Safety Latch
- Lightweight Sliding Pedal
- Quick-Acting Top Latch
- Tilt Lock with Disc Brake
- Stainless Steel Lens Protection
- Powerful True Blue Barn Door
- High Efficiency, Wide-Angle Lens
- Sturdy Top Latch Positioning
- IP Rating IP23
- Corrosion Resistant Aluminum Construction
- Extremely Uniform Light Distribution
ARRI D5 Rental (575W HMI Fresnel) Where?
If you are looking for a reliable place to rent ARRI D5 (575W HMI Fresnel) or rent other filming lights, please contact ADN Film immediately. With extensive experience in the field of production and rental of professional filming equipment, ADN Film has affirmed its position as a reliable partner for many film projects.
What makes ADN Film stand out is its diverse portfolio of high-quality filming equipment, including the ARRI D5 (575W HMI Fresnel) filming light. ARRI D5 (575W HMI Fresnel) is known as one of the top equipment in the film industry, with the ability to create powerful light and amazing quality. ADN Film is committed to providing the highest standard equipment to ensure your project is executed with perfection.
Not only renting equipment, ADN Film is also proud of its team of professional and experienced gaffers, dobs and lighting staff. We are ready to advise and support you throughout the film production process.
With ADN Film, you are not simply renting equipment, but also cooperating with a reliable partner, ready to accompany you on the path of creativity and artistic production.
