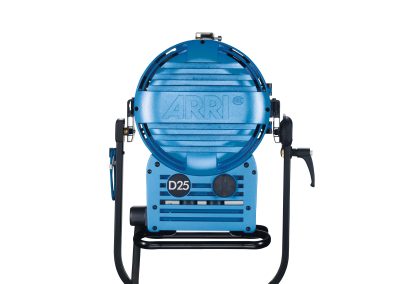

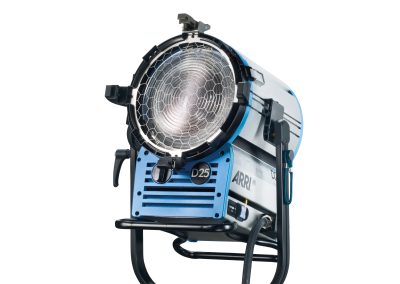

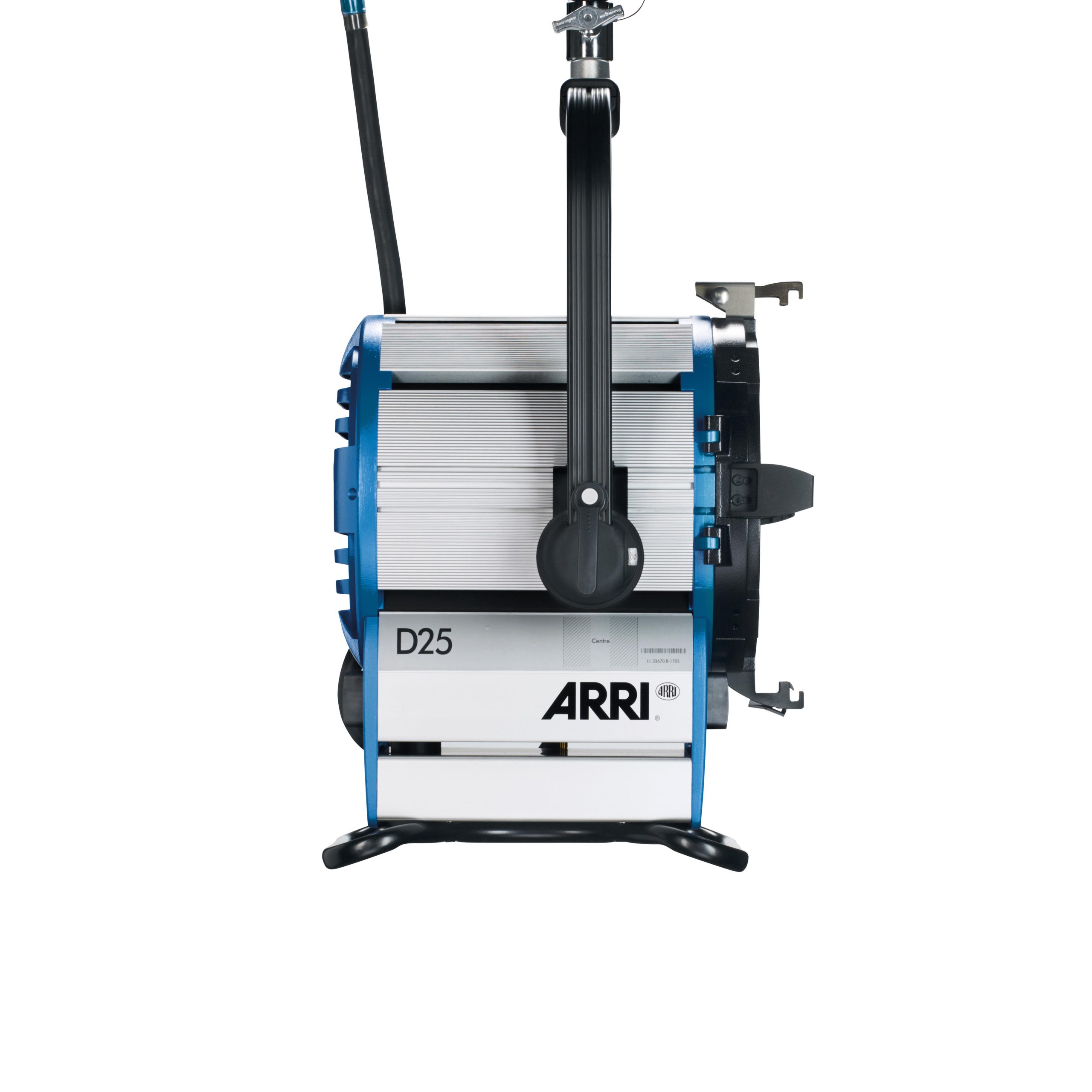

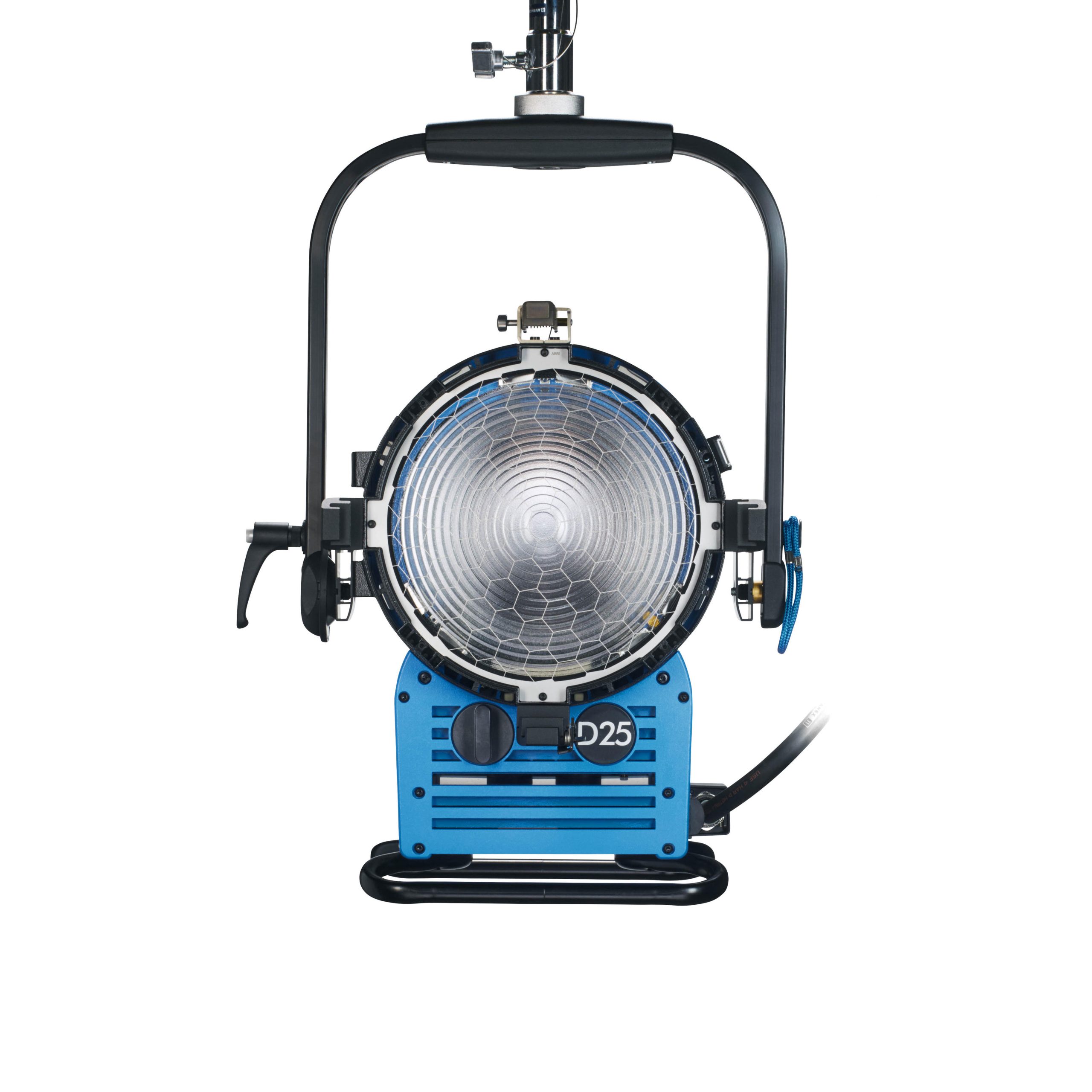

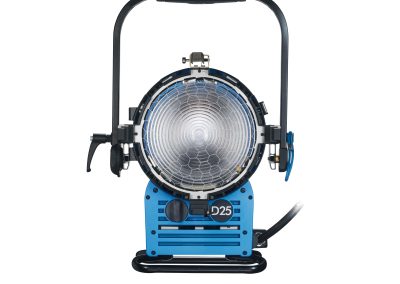

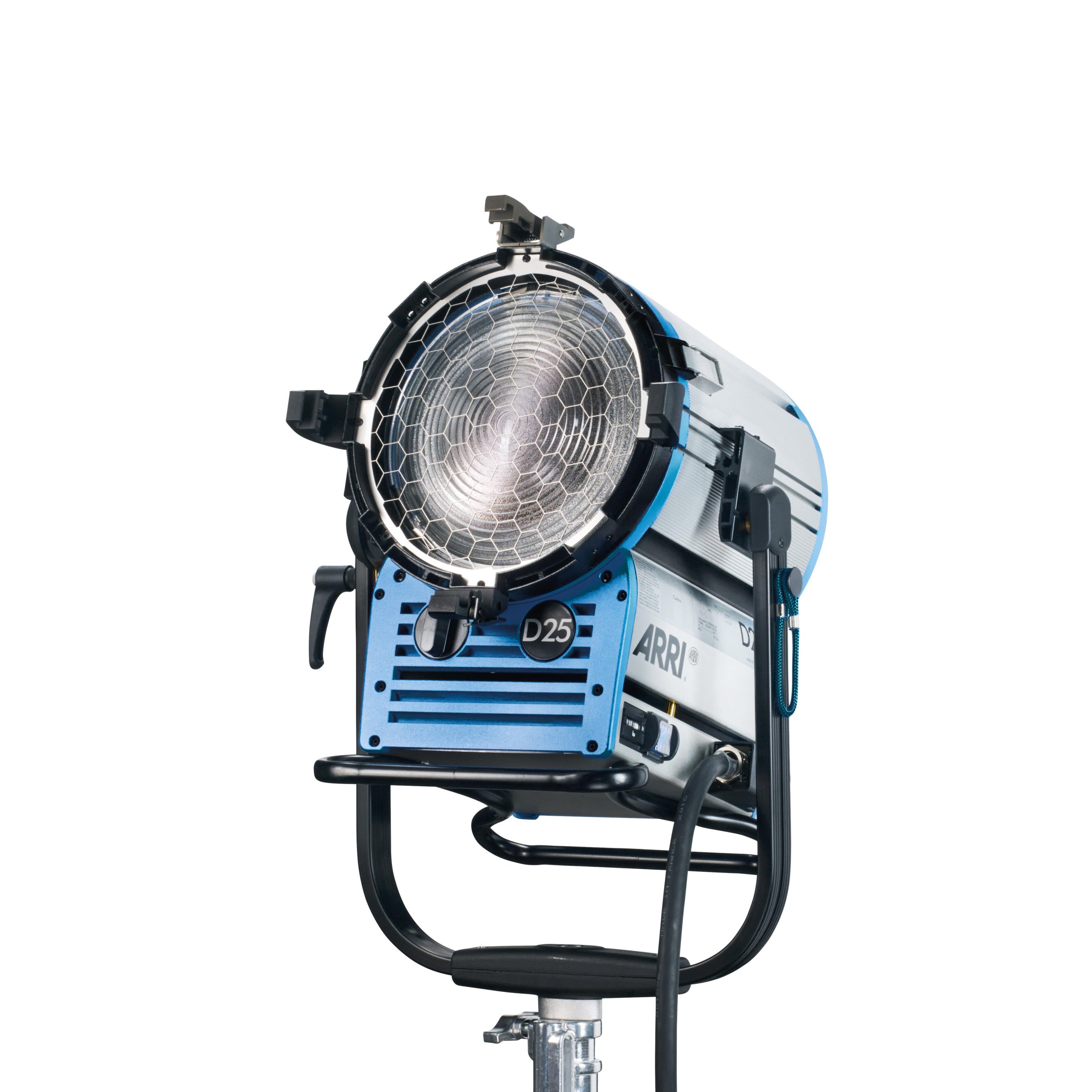

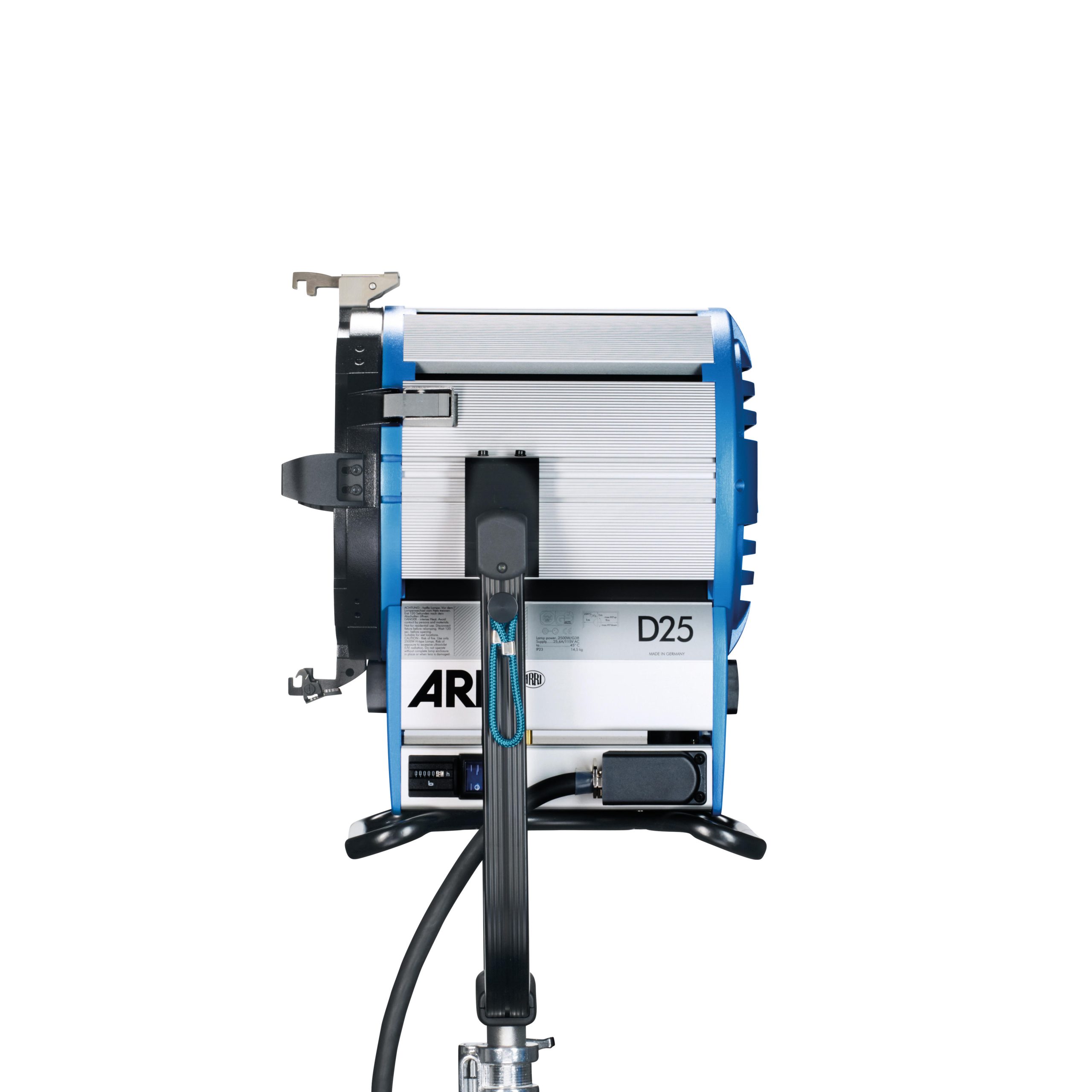

ARRI D25 (2500W HMI Fresnel)
Technical Information
| Series | True Blue D |
| Model | True Blue D25 |
| Mains Plug | VEAM, Schaltbau (GTV-Standard) |
| Lamphead Type | Fresnel, 2,500 W |
| Reflector | Spherical specular high purity aluminium |
| Lamp Type | Metal Halide 2,500 W/SE |
| Power Consumption | 2,500 W |
| Voltage Range | 115 V |
| Lamp Base | G38 |
| Dimming | yes, 50 to 100 % via ARRI Ballast Unit |
| Correlated Color Temperature | 6,000 K |
| Beam Angle | 6° to 59° |
| Weight in kg net* | approx. 15.5 kg |
| Weight in kg packed* | approx. 18.5 kg |
| Weight in lbs. net* | approx. 34.00 lbs |
| Weight in lbs. Packed* | approx. 40.35 lbs |
| Measurements (HxWxL) incl. Pin in mm* | 777 x 464 x 390 mm |
| Measurements (HxWxL) excl. Pin in mm* | 643 x 464 x 390 mm |
| Measurements (HxWxL) incl. Pin in inch* | 30.5 x 18.3 x 15.4″ |
| Measurements (HxWxL) excl. Pin in inch* | 25.3 x 18.3 x 15.4″ |
| Measurements (HxWxL) Packed size in mm* | 550 x 510 x 690 mm |
| Measurements (HxWxL) Packed size in inch* | 21.7 x 20.1 x 27.2″ |
| Lens / UV-Protection Glass Diameter in mm | 250 mm |
| Lens / UV-Protection Glass Diameter in inch | 9.9″ |
| Accessory Diameter in mm | 330 mm |
| Accessory Diameter in inch | 13.0″ (Scrim) |
| Barndoor in mm | 344 mm |
| Barndoor in inch | 13.5″ |
| Mounting | Spigot 28 mm / 1 1/8″ (1.1″) |
| Housing Color | Blue/Silver, Black |
| Protection Class / IP Rating | I / IP23 |
| Certifications | CE, UKCA, CB, GS, cNRTLus |
| Series | True Blue D |
| Model | True Blue D25 |
| Mains Plug | VEAM, Schaltbau (GTV-Standard) |
| Lamphead Type | Fresnel, 2,500 W |
| Reflector | Spherical specular high purity aluminium |
| Lamp Type | Metal Halide 2,500 W/SE |
| Power Consumption | 2,500 W |
| Voltage Range | 115 V |
| Lamp Base | G38 |
| Dimming | yes, 50 to 100 % via ARRI Ballast Unit |
| Correlated Color Temperature | 6,000 K |
| Beam Angle | 6° to 59° |
| Weight in kg net* | approx. 15.5 kg |
| Weight in kg packed* | approx. 18.5 kg |
| Weight in lbs. net* | approx. 34.00 lbs |
| Weight in lbs. Packed* | approx. 40.35 lbs |
| Measurements (HxWxL) incl. Pin in mm* | 777 x 464 x 390 mm |
| Measurements (HxWxL) excl. Pin in mm* | 643 x 464 x 390 mm |
| Measurements (HxWxL) incl. Pin in inch* | 30.5 x 18.3 x 15.4″ |
| Measurements (HxWxL) excl. Pin in inch* | 25.3 x 18.3 x 15.4″ |
| Measurements (HxWxL) Packed size in mm* | 550 x 510 x 690 mm |
| Measurements (HxWxL) Packed size in inch* | 21.7 x 20.1 x 27.2″ |
| Lens / UV-Protection Glass Diameter in mm | 250 mm |
| Lens / UV-Protection Glass Diameter in inch | 9.9″ |
| Accessory Diameter in mm | 330 mm |
| Accessory Diameter in inch | 13.0″ (Scrim) |
| Barndoor in mm | 344 mm |
| Barndoor in inch | 13.5″ |
| Mounting | Spigot 28 mm / 1 1/8″ (1.1″) |
| Housing Color | Blue/Silver, Black |
| Protection Class / IP Rating | I / IP23 |
| Certifications | CE, UKCA, CB, GS, cNRTLus |
Description
When you need a lightweight daylight-capable Fresnel with a compact size and high performance, the ARRI D25 (2500W HMI Fresnel) is the best choice. The elegant modular construction of the ARRI D25 (2500W HMI Fresnel), using corrosion-resistant extruded aluminum and lightweight die-casting, provides excellent structural strength and weather resistance. Coupled with ARRI’s flicker-free ballasts, the ARRI D25 (2500W HMI Fresnel) is definitely the best film cap.
ARRI D25 (2500W HMI Fresnel) Features
- Cross Cooling System
- Easy Maintenance
- Adjustable Accessory Holder
- Pan Door Safety Latch
- Lightweight and Sliding Pedal
- Tilt Lock with Disc Breaker
- Stainless Steel Lens Protection
- Sturdy True Blue Shed
- Sturdy Top Latch Position
- IP Rating IP23
Where to Rent ARRI D25 (2500W HMI Fresnel)?
If you are looking for a reliable place to rent ARRI D25 (2500W HMI Fresnel) or rent other film lights, look no further. contact now with ADN Film. With extensive experience in the field of production and rental of professional filming equipment, ADN Film has affirmed its position as a reliable partner for many film projects.
What makes ADN Film stand out is its diverse portfolio of high-quality filming equipment, including the ARRI D25 (2500W HMI Fresnel) filming light. The ARRI D25 (2500W HMI Fresnel) is known as one of the top devices in the film industry, with the ability to create powerful light and amazing quality. ADN Film is committed to providing the highest standard equipment to ensure your project is executed with perfection.
Not only renting equipment, ADN Film is also proud of its team of professional and experienced gaffers, dobs and lighting staff. We are ready to advise and support you throughout the film production process.
With ADN Film, you are not simply renting equipment, but also collaborating with a reliable partner, ready to accompany you on the path of creativity and artistic production.
Link manufacturer.
